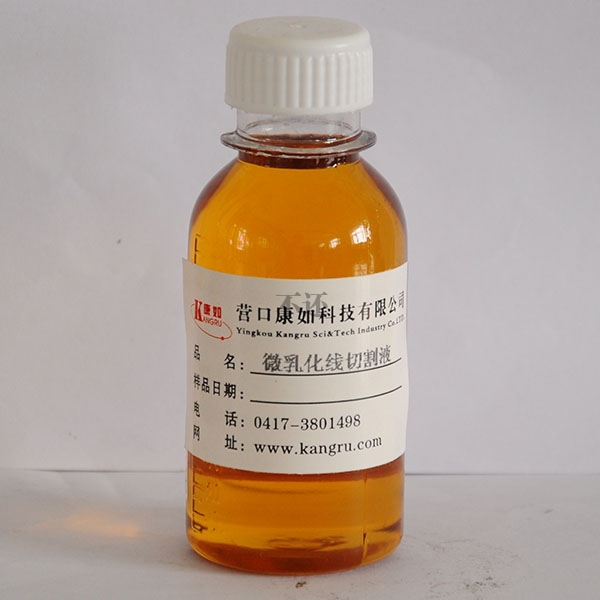

Microemulsion WEDM fluid

Microemulsion WEDM fluid

  • Cname:Wire cutting fluid
  • Views:Times
  • Release date:2021-01-11 11:39:04
  • Content

1、 Overview

This product is designed with environmental protection materials, with good cleaning, chip removal, arc extinguishing performance. No peculiar smell, good permeability, easy to penetrate into the cutting surface, timely remove the chips and electrical corrosion products. The cutting surface is easy to clean and has no greasy substance. It has no disadvantages of traditional emulsified oil, and is not easy to corrupt and stink. The operating table and pipeline are clean. It is suitable for cutting workpieces of different materials. When the thickness is less than 200 mm, the effect is particularly obvious. The product has good lubrication and anti rust, cutting surface without reversing stripes, no discoloration, no corrosion. It is easy to decay in summer, and the processing fluid is not stable.

2、 Main technical specifications


project

quality index

test method

Stock solution

appearance

Brownish red oily liquid

Visual inspection


qualified

JB/T 7453-94

Diluent10%

appearance

Yellow white translucent

Visual inspection

Rust resistance (35 ℃± 2 ℃)


monolithic 24h

qualified

JB/T 7453-94

Lamination4h

qualified

corrosion test

(full immersion at 55 ℃± 2 ℃)


First class gray cast iron

qualified

Red copper 4H

qualified

Surface tension (Mn / M)

≤40

Defoamer ml / 10min ≤

2


3、 How to use it

The recommended concentration of this product is 8-10. It can also be adjusted up or down according to the difference of workpiece material, thickness and equipment performance. When preparing the diluent, the principle of draining water first and then adding the original solution should be followed, and the diluent can be used only after the circulation is uniform.

4、 Precautions

1. Try to use tap water to prepare working fluid. If the water quality is too good, it should be softened.

2. This product should not be mixed with other cutting fluids, so as not to affect the use effect.

3. 5 ~ 35 ℃ indoor sealed storage. In the process of storage and transportation, prevent the mixing of water and impurities, so as to avoid product deterioration.

5、 Packaging, storage and transportation

1. It is packed in 20L and 200L barrels.

2. This product is non-toxic and non combustible. It can be stored and transported as a general commodity.
